What Is Transistor ? | And Use of Transistor in Mobile PCB

What Is Transistor

The transistor is formed by connecting two P-N cells to the posterior poster of each other. The first transistor transistor was invented in 1951 by William Sakeley. Which was a point transistor. Over time, new transistors were discovered, to separate the new transistor from the old transistor, it is called the Bipolar junction transistor. Mainly it is the two p-n treaty diode, so it is also called double diode.
Type Of Transistor

P-N-P Transistor
 :-
In this, p-type semiconductor is composed of two segment (emitting and modulated) n-type semiconductor segment. In this, the current flows through the bass with the emitter.
DIDI
N-P-N Transistor:-
In this, the n-type is composed of two sections of the semiconductor (emitting and modulated) p-type semiconductor segment. It flows from current bass to the emitter


Use of Transistor in Mobile PCB: -
  • The transistor is used primarily to boost the power of incoming signals. That is, the work of amplification.
  • is used for switching, its switching power is higher than the normal switch.
  • The voltage regulator varies the changing of the voltage by fixing the value, which works on cpu en signal.
  • The transistor light section and the charging section are visible.
  • The voltage regulator found in the charging section is made up of transistor.

Terminal of Transistor:-

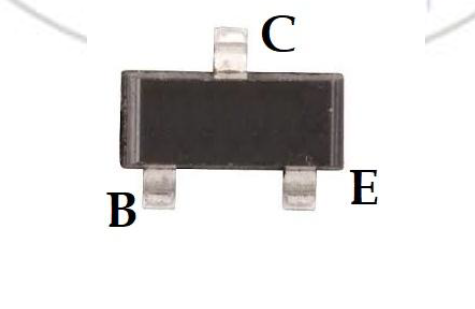

  (1)Base            (2)Collector           (3)emitter

Multimeter se Testing:-

  • The transistor is used primarily to boost the power of incoming signals. That is, the work of amplification.
  • To check the transistor, two diodes coming into it are checked. Which is between E and B and between B and C.
  • Set multimeter to beep mode.
  • keep the red probe at E and black probe on B
  • This transistor is a P-N-P transistor when it comes to riding. The transistor is N-P-N transistor when the readings are not available.
  • When the readings are not available on both terminals, the transistor is bad and the beep is too short.
   Know More





Reding comes on keeping the red probe on E (positive) and black probe on B (negative) and redding does not occur when changing the probe. So the transistor is called P-N-P transistor. Suppose p-n-p means positive-negative-positive, then the transistor's emitter will be positive, base negative, collector positive. So the current flows between the emitter and the base. Therefore, when placed on the red prob emitter (positive) and black prob base (negative) of the multimeter, it shows the transistor value, so we know that the transistor is p-n-p.


Redding comes on keeping the multimeter's red probe on B (positive) and black probe on E (negative) and redding does not occur when changing the probe. So the transistor is called N-P-N transistor. Suppose N-P-N means negative-positive-negative then the transistor emitter will be negative, base positive, collector negative. Hence the current flows between the emitter and the base. Therefore, when placed on the red prob base (positive) and black prob emmiter (negative) of the multimeter, it gives the transistor value. So we come to know that the transistor is n-p-n.


What is Diode ? | which type diode use in mobile

What Is Diode ?


The diode is composed of p and n type two semiconductors, these two semiconductors are melted together. This diode is mainly the p-n treaty. On which the metallic contact is connected to the end so that the current can be given the external voltage. In one area, there is excess of receptive receptacles and greater area of ​​donor insults in other areas. The semiconductor is made by mixing upward atomic arsenic, antimony, with 5 connective crystals of germanium or silon elements. The diode works in the forward base or can pass the stream in only one direction


Terminal positive of p side of the image and terminal of n side is negative.

Identity of diode in Mobile PCB: -

This is seen in the black color of PCB, and a side edge is a white color strip. And one lag bigger and the second lag is smaller

Work Of Doide

The main function of the diode is to convert AC voltage to DC voltage. It is used for mobile protection in parlor, and for changing the waste of ac in the series to dc.
Types of diode: - Diode mainly There are four types.

p-n junction diode:-

This is the form of p-n treaty. On the one side, a white color strip is formed, which is the negative (N) terminal of the diode and the side of the black side is a positive terminal.




Zenor diode:-

This is a type of semiconductor diode. Whose name is named after his inventor C. Zenor. This diode is the value of a fix voltage (4.24.8,6.2 6.8). The voltage value of which will be the same voltage in its output. It is used as a voltage controller.
circuit symbol


 LED (light emitting diode):-

This is a highly degraded p-n treaty diode. Which automatically radiates radiations in the foreground bias. This diode closes in a transparent shell so that the emitted

Symbol:-



Diode Testing By Multimeter

Set multimeter to beep mode.

After that both of the multimeter's probes touch the two ends of the diode, more than 250 rides on one side.




And no other readings come from the other side
Then the diode is considered correct.
In the diode there is a positive and negative terminal, so while keeping the test, keep the multimeter probe in mind, which tells the terminal of the diode. On both sides of the diode, if the direction of the multimeter is placed on both probes, then the red probe is terminal positive. Why is the voltage of 1.5 volt in multimeter flowed from positive to negative.



What Is Resistor ?|How many resistor use in mobile

What Is Resistor ?|How many resistor use in mobile


Resistors) Resistor is an electrical component such as other diodes, capacitors, etc. In circuits the register is used to reduce the flow of the current or to boost the signal level. There are two types of registers depending on the work.

variables resistor ,fixed resistor
symbol




Add caption
Indicate R
Unit (omh's )
Simple resistor:-




 Smd resistor:-



TYPE OF RESISTOR

Simple Smd Resistor:-
This is the most felt in mobile PCB. To make this, ceramic material is used as a thin film. The ceramic material is made by combining glass chromium, silver. Normal smd register is black in the middle and white on the edges on both sides. Mobile Pcb registers tap into thin and Is bright.


Code Resistor:-
The code is written above this register, it can be seen near the charging ic or power ic in the mobile PCB. Jess R220; 3R3
Fuse Resistor:-
This register is of green, blue and white color or O, L, N, X is written.


Package Resistor

This register works on the Normal Register, but it is a group of Normal Register and its testing is also like the Normal Register.


VDR Resistor ( voltage dependent resistor)

vdr resistor is towards a variable resistor. It depends on the incoming voltage on it. When the voltage is low, the registrations of VDR resistor decreases. And when the voltage increases, its registrations increase. In circuits it is used to prevent over voltage. It is on the side of the simple resistor. Testing is also on the side of the simple resistor

Thermistor: -

The tharmistor resistor is also a type of resistor. Which is used to control the temp, when the temp becomes more in the circuit, the resistance of the thermistor increases. Due to which the flow of current in the circuit stops.


Checking register by multimeter: -
1. Set multimeter to ome's range

2. Touch both of the multimeter's both probes of the register, if the value of the reading or register is coming, the register is correct






3. Checking the register does not mean value or reding, the register is bad.
4. If the value of the register is high and the multimeter is checking by keeping it on the lower range, only 1 will show in multimeter then you will have to check the register by increasing the multimeter range once. As the value of your register is 40k. And multimeter is checking by keeping it in 200 Ω. Then multimeter multimeter will show in 1 meter, then you have to increase its range.
