A mobile phone is made up of several components. And when we learn mobile repairing, then it is important to know all its components. All the components used on mobile are divided into three parts card level, Big Level and Small Level. It can be easy to learn mobile repair.
Card Level Part Of Mobile Component

Card Level Part Of Mobile Component

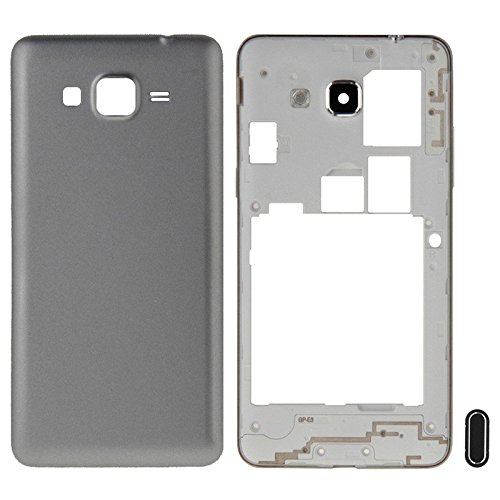

Front body of Mobile Phone

This is full Body Housing Panel For Samsung Galaxy Grand Prime G530.It can come in many colors and sizes. Which is determined on mobile brand and its model.

Back body of Mobile phone

This Is Back Body Panel for Samsung Galaxy Grand Prime G530 G530H.It can come in many colors and sizes. Which is determined on mobile brand and its model.
TOTTA Replacement Housing Back Body Panel for Samsung Galaxy Grand Prime G530 G530H - GreyBattery
This gives a current of 3.7 v volts to turn on the power of the mobile phone.
Image result for mobile battery image

Battery Connector

It connects the battery to the internal circuit track of PCB on the mobile phone.
Image result for battery connector image

Caharjing connector
This connects the charger to charge the mobile phone battery...
Image result for nokia 1650 charging jack
Usb Connector
Modern mobile phones come with USB connector only. Which also charges the mobile phone's battery and transfers data.
Image result for Usb CHARGING Connector
Headphone Connector
It is also called Earphone Connector. It helps to connect the headphone to the mobile phone via jack.
Image result for mobile Headphone Connector JACK

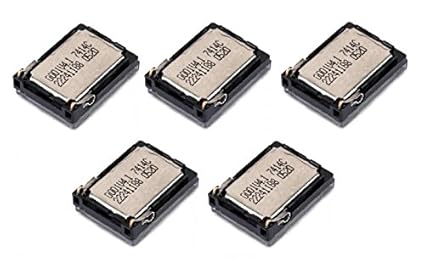

Ringer
Ringer helps us in listening to sound or song. It is also called loudspeekar.
 ringer image
Speakar
The speaker helps to listen to sound during phone call when the loudspeaker or headphone is NOT ON.its called earpeace
Image result for samsung j2 mobile earpiece image
Microphone
It is also called a mic in short. It transmits the sound of the speaker during the phone call. It also helps in recording sound in mobile phones.
Image result for digital mic for mobile

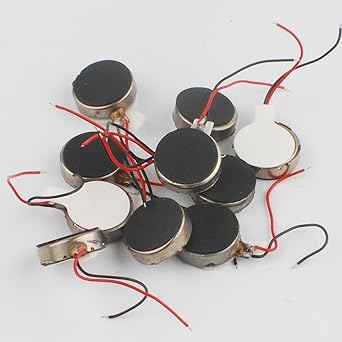

Vibrator
It creates vibration in a cell phone when vibration mode setting is turned ON.this is the motor
Image result for mobile phone Vibrator motor image
LED
The LED is full forme light emitting diode. This is a diode, which generates light in the mobile phone.
Related image
SIM Card
Subscriber Identification Module. This is a small rectangular chip with circuit and information of user of the card. A SIM card is necessary to make a phone calls with a mobile phone.
Image result for sim card image
SIM Card Connector
It connects the SIM card to the Circuit or PCB of a mobile phone.
Image result for sim card connector
Keypad Button
It is connected to the keypad carbon to enter numbers to make phone calls and other data
Image result for mobile Keypad Button
Keypad Connector
It connects the keypad to the PCB of the cell phone.
Image result for nokia  Keypad connector
Keypad Carbon
It is present in between keypad button and the PCB. It connects the keypad buttons to the PCB of a mobile phone
Related image
Memory Card
It is used to store data like document, music, videos etc. These are available in different capacities like 1GB, 2GB, 4GB, 8GB, 16GB, 32 GB etc.
Image result for Memory Card image
Memory Card Connector
It connects the memory card to the PCB of a mobile phone.
Related image
Camera
It is used to capture still images or record videos.
Image result for mobile phone Camera Connector
Camera Connector
It connects the camera to the PCB of the mobile phone.
Image result for mobile phone Camera Connector

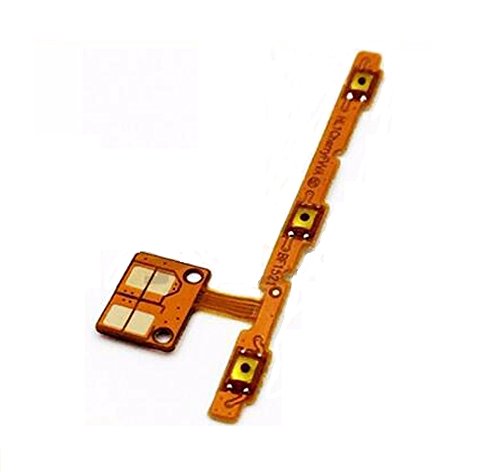

ON / OFF Switch or Power Button
It helps to switch the mobile phone ON or OFF. Related image
Volume up/down key
The button is used to reduce the sound. It has a different use in the smartphone.
Image result for Volume up/down key
Display
It is display screen of the mobile phone.
Related image
Display Connector
It connects display screen to the PCB of a Mobile Phone.
Related image
Internal Antenna
It helps to capture network frequency.
Image result for mobile phone Internal Antenna
PDA
Display or Screen of a touch screen mobile phone.
Related image
Antenna Cable
it connects mobile PCB to internal antenna
.
